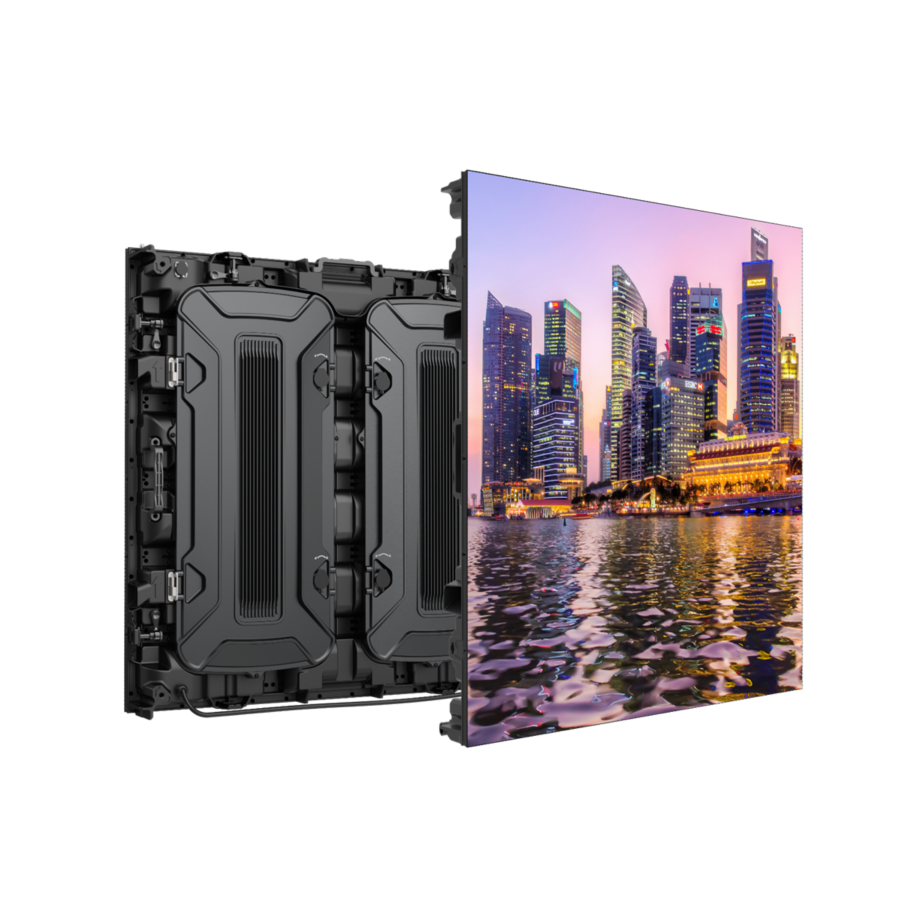

Outdoor Waterproof Type Fixed LED Display Unit
Excellent Display Performance
Good Safety and Stability
Convenient Maintenance
· With the brightness of 6000-7500nits, display can easily be visible even in direct sunlight
· Contrast ratio up to 7000:1, presenting richer colors and vivid image to attract more potential audiences
· High refresh rate of 3840Hz, no trailing, no frame flickering even when playing fast-moving contents
· Therefore, pictures processing is smooth, stable and delicate
· Ultra-wide viewing angle of 140° horizontal and 120° vertical, which can maximize the coverage of the audience and improve the return on investment
· High strength die casting magnesium-aluminium alloy cabinet, to ensure high strength of product and excellent flatness of screen as well
· Modern design, with only 29kg/m2, saving both labor costs and installation structure
· Fanless design reduces both noise and screen failure rate during operation
· Excellent heat dissipation design improves the heat dissipation capacity. Therefore, it can ensure that the product is more durable and stable during operation
· IP65 rating - fully enclosed design
· Guarantees completely safety and very satisfactory dust prevention, waterproofness and corrosion resistance
· Trouble-free operation even in extremely harsh environments
· 320×160mm universal module dimension design, You can easily upgrade screens with different pitches without replace the steel structure
· Rear maintenance cabinet, bilateral door design, more operating space, convenient and fast maintenance
· Friendly handle design, including left side + right side + upper side, makes handling easier and safer during installation
Parameter |
Value |
|||
---|---|---|---|---|
Pixel Pitch |
6.667mm |
8mm |
10mm |
16mm |
Pixel Density |
22500 pixels/m² |
15625 pixels/m² |
10000 pixels/m² |
3906 pixels/m² |
Pixels Per Panel |
144×144 Dots |
120×120 Dots |
96×96 Dots |
60×60 Dots |
Brightness |
5500nits |
5500nits |
5500nits |
5500nits |
Weight |
29kg/㎡ |
|||
Cabinet Size |
W960mm*H960mm*D111mm |
|||
Maintenance |
Rear |
|||
Contrast Ratio |
7000:1 |
7500:1 |
8000:1 |
9500:1 |
Ingress Protection |
Front:IP65、Rear:IP54 |
|||
Input Power <Max> |
720W/m² |
750W/m² |
750W/m² |
750W/m² |
Input Power <Typical> |
240W/m² |
250W/m² |
250W/m² |
250W/m² |
Color Temperature |
2000-9500K Adjustable |
