Strong and Stable for Outdoor Display
● High Performance Advertising Potential
● Stable and Continuous
● Effecient maintenance
● Wide range of applications
● 6000-10000nits brightness
● 14bit gray scale
● 3840Hz refresh rate
● Higher contrast*
The Umate SF can produce premium images with a brightness of up to 10,000 nits
Viewing angle H: 160° V: 110°
Bigger viewing angle to make sure a better viewing experience
Seamless design that withstands any weather and environment with IP65 protection

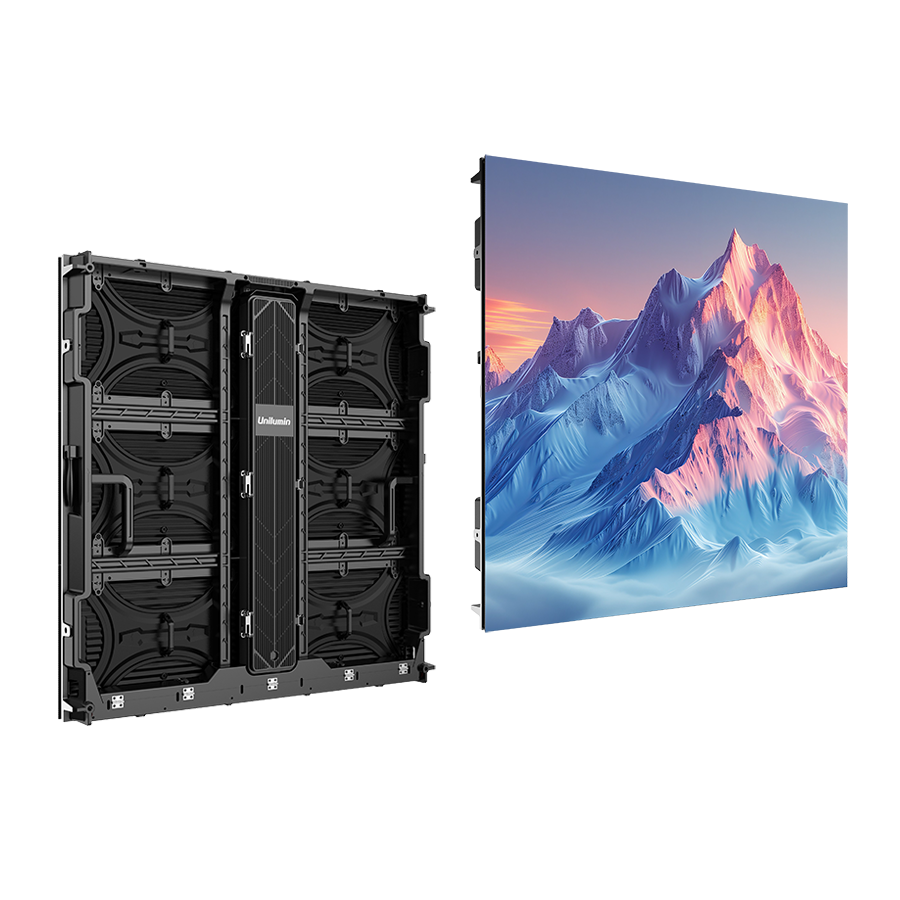

Hidden alignment design
● Insulates from sunlight and slows down wire aging
● The back is simple and aesthetically pleasing
● Better suited for direct outdoor application without hemming
● Front maintenance
● Rear maintenance
● Die-casting frame, light and robust
● The cabinet weight is ≤23kg/panel
● Cabinet thickness: 94.05mm
● Dual handles for easier installation and handling
Umate SF supports single-person installation and maintenance, reducing labor and shipment costs
● Umate SF series support 90°right angle solution
● Umate SF series can be Perfect seamless Corner cabinet for naked-eye 3D solution
| Parameter | Value | |||
| Model | Umate SF4 | Umate SF6 | Umate SF8 | |
| Pixel Pitch (mm) | 4.44 | 6.67 | 8 | |
| Cabinet Dimensions (WxHxD)/(mm) | 960x960x94.05 | |||
| Module Dimensions (WxH)/(mm) | 480X320 | |||
| Cabinet weight (kg/panel) | 23 | |||
| Color Grayscale (Bit) | 14 | |||
| Gray Scale per Color (level) | 16384 | |||
| Refresh Rate (Hz) | 3840 | |||
| Brightness (nits) | 5000-6000 | 6000-10000 | 6000-10000 | |
| AC Input Power Maximum Value (W/㎡) | 650-700 | 640-750 | 600-710 | |
| AC InputPower Typical Value (W/㎡) | 217-233 | 213-250 | 200-240 | |
| IP rating (Front/Rear) | IP65 | |||
